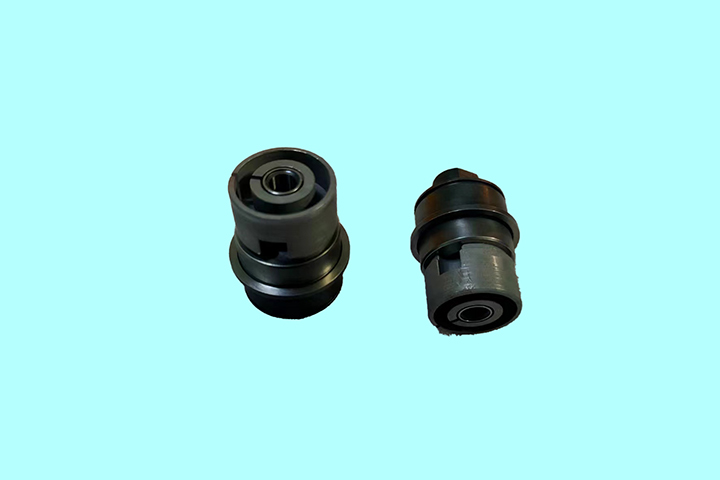

高壓共軌電磁閥
High pressure common rail solenoid valve
該電磁閥用于柴油發動機高壓共軌系統，可精準控制油量的噴入及回油系統單元。主要功能是通過ECU來控制閥芯的動作頻率與電磁閥的接觸間隙控制油量大小。
The solenoid valve is used in the high-pressure common rail system of diesel engines, which can accurately control the fuel injection and return system units. The main function is to control the operating frequency of the valve core and the contact clearance of the solenoid valve through the ECU to control the oil volume.
產品描述
- 應用領域 Application area -
應用于柴油機高壓共軌系統。
It is applied to high pressure common rail system of diesel engine.
- 主要參數 Main parameter-
| 電阻 | 235mΩ ±10 |
| Resistance | |
| 測試電流1 | 12A |
| Test current 1 | |
| 測試電流2 | 25A |
| Test current 2 | |
| 絕緣耐壓 |
500V/3s，導通電流小于0.2mA The conduction current is less than 0.2mA |
| Dielectric Strength | |
| 輸入電壓 | DC 12V |
| Input voltage | |
| 電感 | 87±5uH |
| Inductance | |
| 氣密性 |
6.26Bar 泄露量不大于500Pa Leakage is not more than 500Pa |
| Air tightness | |
| 耐溫 | -40-130° |
| Temperature resistance | |
| 電磁力 | 95±5N |
| Electromagnetic force |
